Hantek 6104BD PC USB ออสซิลโลสโคป 4 ช่อง แบนวิด 100MHz + ฟังก์ชั่นเจนเนอเรเตอร์ Sampling rate 1GSa/s บันทึก 64K

สั่งผ่านไลน์ได้เลยรบกวน @thaihotairtool (มี@นะครับ)
รหัสสินค้า
HT-6104BD
ราคาพิเศษ ฿7,800.00 ราคาปรกติ ฿9,360.00

Feature

  • 4CH oscilloscope & function/Arb. waveform generator.
  • The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.

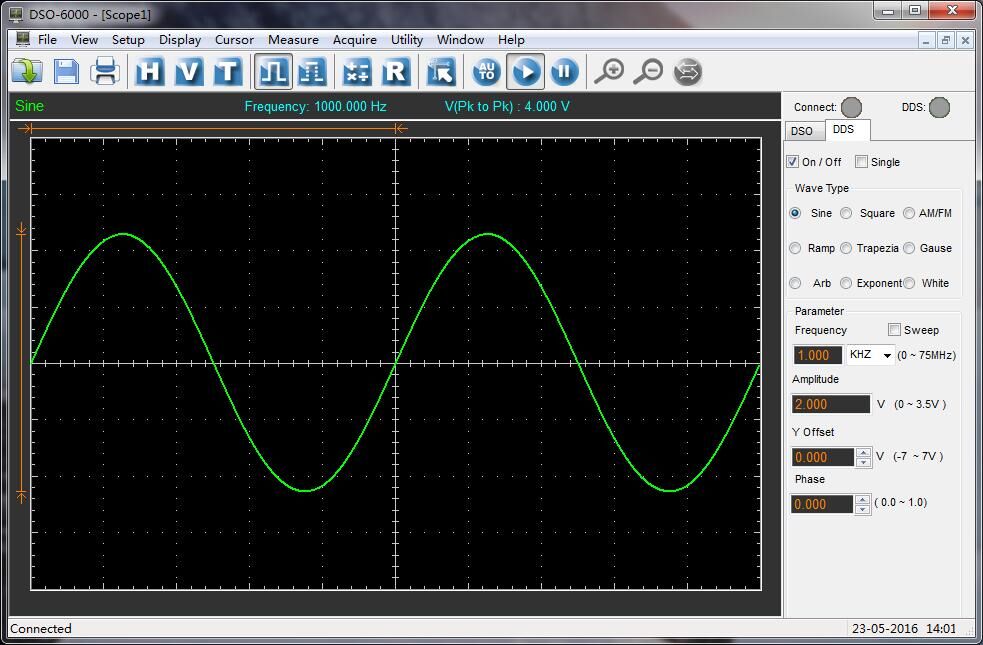

  • Function/Arbitrary Waveform Generator: 200MSa/s DDS, 12bits of vertical resolution, built-in variety of standard waveforms, arbitrary waveform easy to edit, which is convenient to reappear sensor and other irregular signal.
  • Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.
  • USB2.0 Interface, plug and play device.
  • Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
  • Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.
  • Software support: Windows10, Windows 8, Windows 7
  • The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.
  • More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
  • Serial bus triggering and decode, Bus protocol information can be quickly and intuitively displayed in table form.
  • Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
  • FFT spectrum analyzer
  • One computer could connect with multiple oscilloscopes, expand the channel number easily.
  • Provide secondary development library DLL; Provide Labview\VB\VC developing examples.

Model

Hantek6074BD/Hantek6104BD/Hantek6204BD/Hantek6254BD

Bandwidth

70MHz/100MHz/200MHz/250MHz

Channel

4 CH

Real-time Sampling Rate

1GSa/s

Memory Depth

64K

Time Base Precision

±50ppm

Time Base Range

2ns/div-1000s/div (1-2-4 sequences)

Input Impedance

1MΩ 25pF

Input Sensitivity

2mV/div~10V/div

Vertical Resolution

8Bit

Vertical Displacement Range

2mV~10V/div @ x1 probe;

20mV~100V/div @ x10 probe;

200mV~1000V/div @ x100 probe;

2V~10000V/div @ x1000 probe

DC Gain Accuracy

±3%

Bandwidth Limit

20MHz

Trigger Mode

Edge, Pulse, Video, Alternative

Trigger Source

CH1, CH2, CH3,CH4

Waveform Signal Process

+,-,x,÷,FFT, Invert

Cursors Measurement

Cross, Trace, Horizontal, Vertical

Auto Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Arbitrary Waveform Generator Mode

Waveform Frequency

DC~25MHz

DAC

2K~200MHz adjustable

Frequency Resolution

0.10%

Channel

1CH waveform output

Waveform Depth

2KSa

Vertical Resolution

12 bit

Frequency Stability

<30ppm

Wave Amplitude

±3.5V Max.

Output Impedance

50 Ω

Output Current

50mA, Ipeak=50mA

System BW

25M

Harmonic Distortion

-50dBc(1KHz),  -40dBc(10KHz)

General Features

Volume

175mm * 105mm * 25mm

Weight

0.9KG

Accessory

2 passive probes, 2 gator clip lines,1 BNC to BNC cord
